Drone Videography Guide: Camera Settings, Shot Types and Filming Tips

Drone videography is aerial filming with a camera drone on a stabilised gimbal, and it asks three skills of you at once: flying, exposure and framing. Cinematic footage comes down to three decisions. Lock your exposure, fly slower than feels natural, and build every clip around one move. Start at 4K/25fps with a 1/50s shutter and base ISO, then put an ND filter in front of the lens so bright Australian light can't push your shutter to 1/1000s and strip the motion blur out of your shot. Most footage that looks amateur isn't a gear problem. It's a shutter that's too fast, stick inputs that are too quick, and clips that are too short to cut with.

Drone Camera Settings to Set Before Take-off

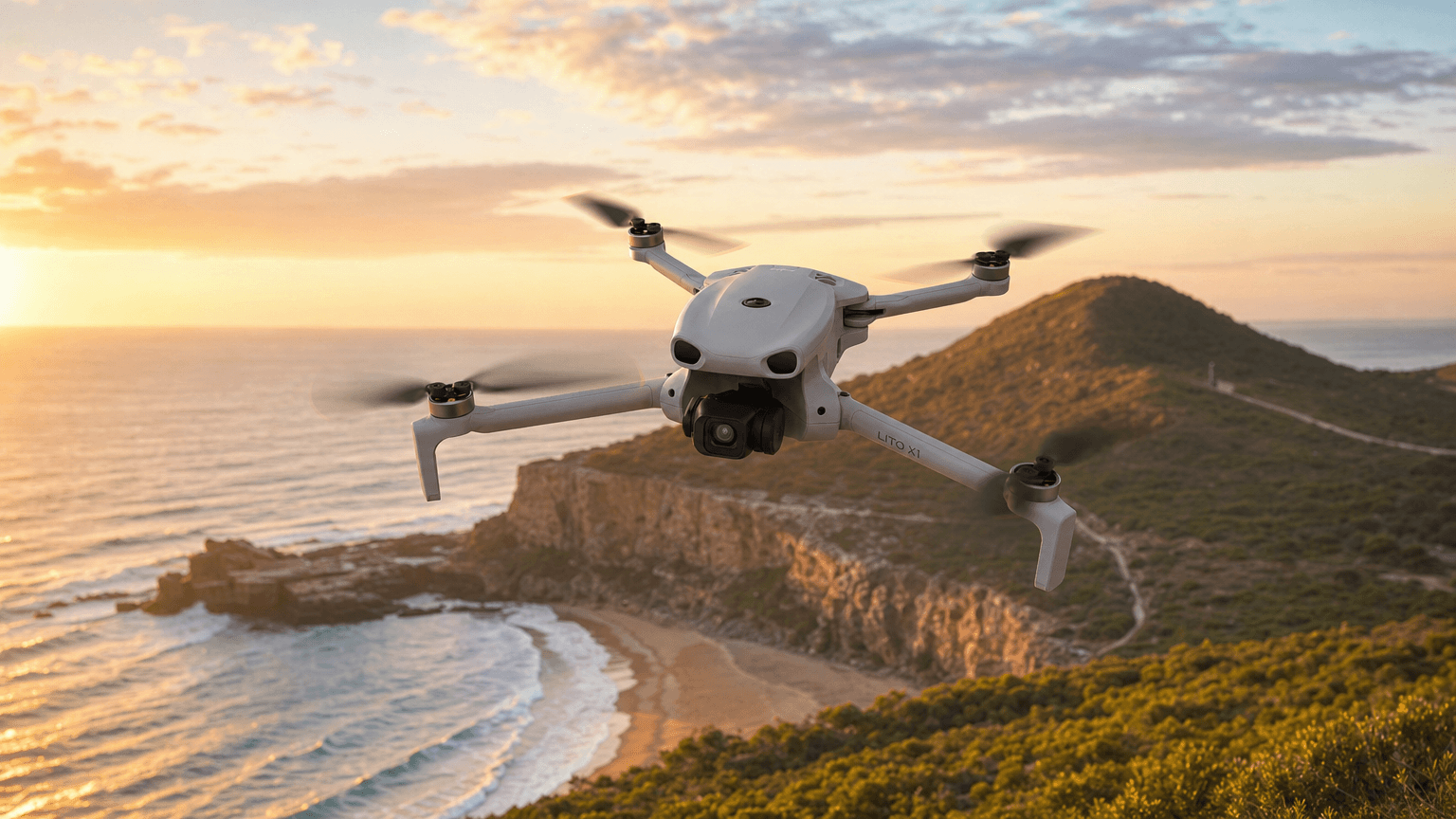

Set your camera manually on the ground: 4K resolution, 25fps, a 1/50s shutter, ISO 100 and a locked white balance. Auto exposure hunts mid-flight, and a brightness shift halfway through an orbit is hard to fix in the edit. The whole setup takes about ninety seconds.

Resolution and Frame Rate

Film in 4K at 25fps in Australia, then switch to 50fps or 100fps for anything you want to slow down. Even if you're delivering 1080p, the extra resolution gives you room to crop, reframe and stabilise in post without softening the image.

Frame rate is the setting worth adapting to the local market. Australian mains power and artificial lighting run at 50 Hz, so 25fps and 50fps are the safe defaults here. They keep you clear of the flicker you can get from streetlights, stadium lighting and LED signage at 24fps or 30fps. If a shot is destined for a US or global delivery spec, 24fps or 30fps works, but pick one and stay with it for the whole shoot.

Conform 50fps or 100fps clips to a 25fps timeline for smooth 2× or 4× slow motion. If the clip is heading to social, film it vertically rather than cropping a landscape frame down to a phone screen later.

Resolution matters less than the numbers beside it. Sensor size, bitrate and colour depth do more for image quality than pixel count, so film at the highest bitrate your drone offers and use 10-bit colour where it's available.

Shutter Speed and ND Filters

Set your shutter to double your frame rate: 1/50s at 25fps, 1/60s at 30fps. That's the 180-degree shutter rule, and it produces the natural motion blur your eye reads as filmic. Anything faster looks stuttery, especially on fast side-slides and orbits.

Most drone cameras have a fixed aperture, so shutter speed and ISO are your only exposure controls. Point one at a beach at midday and it will jump to 1/1000s or higher to avoid blowing out the highlights. Your exposure ends up correct and your motion ends up ruined. Shutter speeds that fast belong to stills photography, where freezing detail is the goal.

ND filters solve that by cutting light before it reaches the sensor, letting you hold 1/50s in full sun. As a starting point, ND8 suits overcast or late afternoon, ND16 suits bright sun, and ND32 or stronger suits midday over sand, water or snow. Australian summer light is strong, so check the shutter reading on your screen rather than relying on the filter's rating. A polarising filter does a separate job: it cuts glare off water and deepens a washed-out sky, which is worth carrying for coastal or river work.

ISO, White Balance and Colour Profile

Keep ISO at base, usually 100, lock white balance manually, and film in D-Log M only if you plan to colour grade.

Drone sensors are small, and noise in a bright blue sky or a dark shadow line is hard to clean up later. If the image is too dark at base ISO with a 1/50s shutter, remove ND rather than raising ISO.

For white balance, around 5600K works for daylight and 6500K to 7000K for overcast. Auto white balance drifts as the drone rotates between a shaded cliff face and open sky, and that colour shift tends to land in the middle of your smoothest move.

Colour profile is a workflow decision, not a quality setting. Shooting flat pays off only if the file holds the extra information, and that comes down to bit depth. An 8-bit file stores 256 brightness steps per colour channel. A 10-bit file stores 1,024. That's what lets you lift a shadow or pull back a sky in the grade without the gradient breaking into visible bands. DJI Lito X1 records 4K/60fps HDR with 14 stops of dynamic range and offers 10-bit D-Log M, so a golden-hour frame with a bright sky and a shaded gully arrives with both ends intact and with the latitude to balance them afterwards.

If you're not colour grading, film in the standard profile. An ungraded D-Log M clip looks worse than a well-exposed standard one.

Drone Shot Types Worth Learning First

Seven drone shots cover most of what you see in professional aerial work: the reveal, the orbit, the top-down, the push-in, the pull-back, the fly-through and the tracking shot. Learn these before you attempt anything more complex, because a clean reveal cuts better than a shaky combination move.

• The reveal. Fly forward low behind an obstacle such as a ridge, treeline or building, then tilt the gimbal up as the subject appears. The obstacle in the foreground does the work, so start closer to it than feels comfortable.

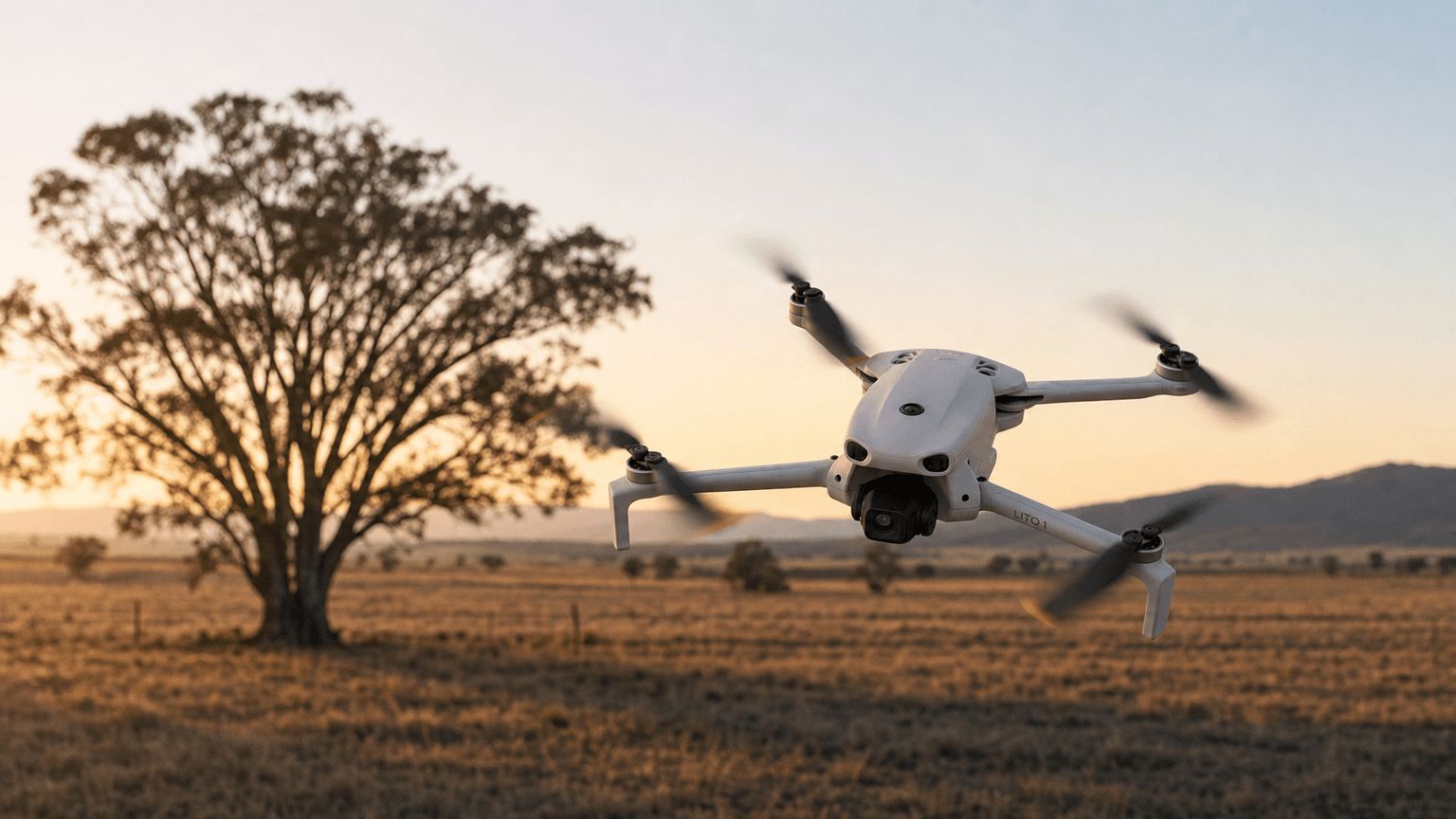

• The orbit. Circle a fixed subject while keeping it centred, using a slow yaw with gentle roll stick. Hold the radius and the speed steady, or use an automated circling mode until your manual coordination catches up.
• The top-down. Point the gimbal straight down and fly a slow straight line or rotate on the spot. Roads, jetties, reefs and crop lines turn into graphic patterns from directly above.
• The push-in. Fly slowly straight towards a subject at a constant altitude. It's the simplest of the seven and the one that reads most like a cinema dolly.
• The pull-back. Start tight on your subject, then fly backwards and climb at the same time. It works as a closing shot because it shows the viewer where the subject sits in the landscape.
• The fly-through. Guide the drone through a natural frame such as a gap in a treeline, an archway or a rock arch. It adds a strong sense of depth, and it rewards flying the line once before you commit to a take.
• The tracking shot. Follow a moving subject such as a car, surfer or mountain biker, either alongside or from behind. Match your speed to theirs before you start recording, not during.

The orbit and the tracking shot are the two that fall apart first, for the same reason: both ask you to fly a path and frame a subject at the same time, with one thumb on each. That's where subject tracking earns its place. Select your subject, and ActiveTrack on DJI Lito X1 or DJI Lito 1 holds it in frame while you concentrate on the flight path. The circle stays round. The surfer stays centred. If you're still building stick control, Lito 1 also has QuickShots and MasterShots to run preset moves end to end, and Lito X1 has smart video modes for more complex camera moves.

Once those are reliable, start combining two axes: rise while pushing forward, or orbit while slowly descending. Two axes is usually the ceiling for handheld sticks. Three at once is where footage starts wobbling.

How to Frame a Drone Shot

Framing from above follows different rules from framing on the ground, because the horizon often disappears. Symmetry and leading lines carry a top-down shot where the rule of thirds would carry a normal landscape.

Look for lines the ground already gives you: a road, a river, a jetty, a fence line, a wave breaking. Put them running diagonally through the frame rather than parallel to the edge, and they pull the eye across the shot. In a top-down, centre a symmetrical subject deliberately instead of half-committing to an off-centre position.

For anything with a visible horizon, keep the subject off-centre and leave space in the direction of movement. Then layer the frame: something close, something mid-distance, something far. As the drone moves, the near layer sweeps past faster than the far one, and that parallax is what makes an aerial shot read as three-dimensional.

Drone Filming Tips That Make Footage Usable

Fly slower than feels right, give each clip one move, and hold it for ten to fifteen seconds. These habits do more for a clip than an equipment upgrade, and they're the ones a working drone videographer applies on every flight.

• Fly slower than looks right on screen. On the live feed a slow move looks tediously slow; on a timeline it looks controlled. Use your aircraft's cinematic or smooth flight mode to soften stick response, and apply pressure gradually instead of stabbing at the sticks.
• Choose altitude for the feeling, not the ceiling. The same speed looks sedate at 100 metres and fast at 10 metres, because close objects sweep through the frame. Fly low for energy, high for scale.
• Give each clip one job. One move, one direction, held long enough to use. A reveal that turns into an orbit halfway through is two half-clips you can't cut with.
• Start recording early and stop late. Roll three seconds before the move begins and three seconds after it ends. That gives you ten to fifteen usable seconds and clean handles for the edit.
• Shoot coverage from one spot. Get a wide establishing move, a mid-distance move and a tight detail from the same take-off point. Three angles of one location cut together; one angle of three locations doesn't.
• Keep the horizon level. Unless you're tilting deliberately, a sloping horizon is distracting to watch and awkward to correct later without cropping.
• Fly out into the wind. Head into the breeze on the way out so you come home with it behind you, and land at 25% to 30% battery rather than chasing one more shot. On a coastal headland the wind builds as the day warms.

Drone Filming Rules in Australia

Australian airspace rules shape your shot list before your camera settings do. Under CASA's drone safety rules, you must fly at or below 120 metres above ground level, keep at least 30 metres away from people who aren't involved in your flight, fly during the day, keep the aircraft within visual line of sight using your own eyes rather than a screen or goggles, fly one drone at a time, and stay clear of crowds, populous areas and emergency operations. If your drone weighs more than 250 g, you must also stay 5.5 km clear of a controlled airport, and regardless of weight you must stay clear of runway approach and departure paths.

What the Rules Mean for Your Shot List

Read practically, the rules settle three things before you take off. Top-down shots get planned within a 120-metre ceiling. Subject shots need people who are briefed and involved in the flight, since anyone else has to be 30 metres away. And night shots aren't available under the standard rules, which makes golden hour your window.

Where You Can and Can't Fly

Local rules sit on top of the national ones. Many national parks and reserves restrict or ban recreational drones, and councils set their own conditions for the parks, reserves and foreshores they manage, so what's fine at one headland can be an offence at the next. Check a CASA-verified drone safety app before every flight, since airspace and local restrictions change.

How to Plan a Drone Shoot

Plan the shoot on the ground: check the airspace, scout the location on a satellite map, decide your three or four shots, then run the gear checks.

A satellite view tells you where the sun will fall, where the obstacles are and where you can launch from. Sunrise and sunset times set your window, and on the coast the wind usually builds through the morning, so the calm air is early.

Before you fly, work through the same short list every time. Batteries charged and seated firmly. Card formatted in the drone rather than on a computer. Propellers checked for chips. Compass and satellite lock confirmed. And set your return-to-home altitude above the tallest obstacle between you and your launch point.

How long you can stay up decides how much of that plan you get through. A reveal rarely works on the first attempt, and golden hour gives you roughly forty minutes of usable light. DJI Lito X1 and DJI Lito 1 both fly up to 36 minutes on the Intelligent Flight Battery, or up to 52 minutes with the Intelligent Flight Battery Plus. That's the difference between one hurried pass and a full shot list while the light is still good. Both fold to palm size and come in under 249 g, so carrying one out to a headland stays easy.

Coastal and outback work adds one more step. Salt spray and fine dust get into motors and gimbals, so wipe the aircraft down after a beach or desert flight and keep the gimbal protector on in transit.

Drone Features That Change What You Can Film

Two things can't be fixed afterwards: how steady the camera is in the air, and how much light the lens can gather at the edges of the day.

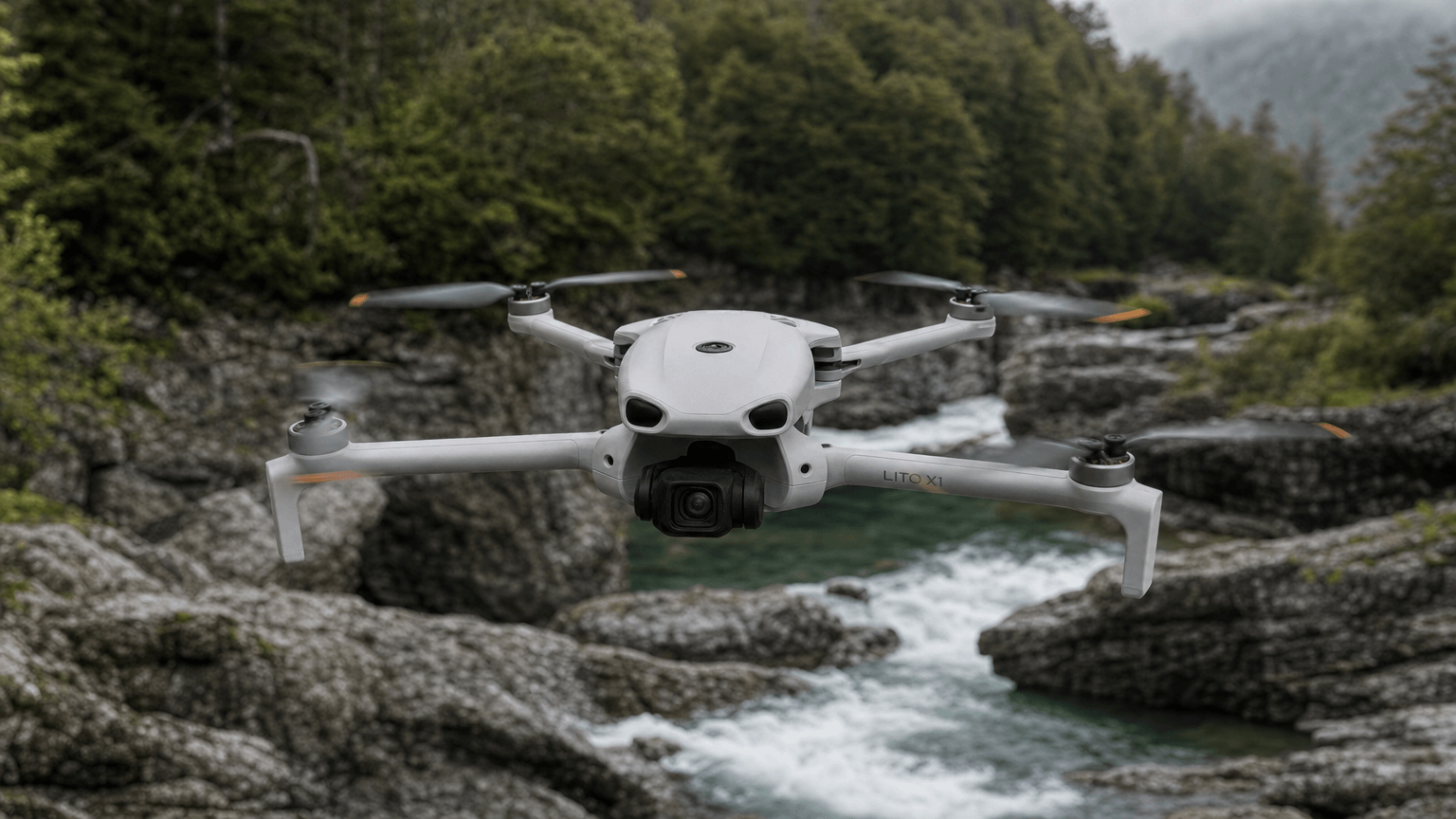

Stabilisation comes in two forms. Electronic stabilisation works on the image after the sensor has captured it, so it smooths movement by cropping into the frame. A 3-axis mechanical gimbal works before capture. Motors on the pitch, roll and yaw axes physically counteract the aircraft's movement, so the camera stays level while the airframe corrects for a gust. DJI Lito X1 and DJI Lito 1 both use one, which is why a slow push-in over water holds its horizon without giving up any of the frame.

Light is the other one. Lito X1 pairs a 1/1.3-inch sensor with an f/1.7 lens. The wide aperture keeps detail in the scene once the sun has dropped below the ridgeline, which extends your shooting window at both ends of golden hour.

If your work is mostly social, Lito 1 records 2.7K vertical video, so a reel gets framed in the air, and the same flight gives you up to 8K photos.

Both aircraft use O4 video transmission for a 1080p/60fps live view. At the distances you actually fly, that means a clear, low-latency feed, so you frame the shot you'll get rather than guessing from a stuttering picture.

Drone Video Editing Software and Workflow

Choose drone video editing software by what it does with your files. It should read 10-bit H.265 without forcing you to transcode first, apply a D-Log M LUT so your flat footage starts somewhere sensible, and conform 100fps clips to a 25fps timeline rather than playing them back fast.

Match the tool to the deadline. A mobile app with one-tap templates gets a social cut out the same day. Anything you're grading, colour matching across a shoot, or delivering to a client belongs in a desktop editor.

Build the sequence the way you shot it. Open on the widest establishing move, then cut to the mid-distance and the detail. Correct exposure and white balance across all the clips before you touch a creative grade, or you'll be grading three different starting points.

Three mistakes account for most disappointing edits. Oversaturated greens and blues turn Australian landscapes synthetic, and the eucalypt greens go first. Heavy stabilisation applied in post crops and warps the frame, so fix the movement in the air instead. And ungraded D-Log M looks worse than a well-exposed standard-profile clip, so if you didn't grade it, don't send it flat.

Then cut back hard. Keeping six clips from a 20-minute flight is a reasonable result, which is why you shoot coverage in the first place.

Let's Answer Your Questions

Can I fly a drone at the beach in Australia?

Usually yes, provided the beach isn't busy. You need to keep 30 metres from anyone not involved in your flight, and you can't fly over a populous area, which rules out a crowded summer beach. Councils and national parks add their own restrictions, so check a drone safety app first.

Can I film people with my drone in Australia?

Only people involved in your flight, or people at least 30 metres away. Aviation rules cover safety rather than privacy, and the Australian Government's drone privacy guidelines note that a serious invasion of privacy can be actionable, including against recreational flyers. Ask permission before filming identifiable people.

Why does my drone footage still look shaky with a gimbal?

Check your shutter speed first. Anything faster than double your frame rate removes motion blur and makes small movements look jittery, which stabilisation can't correct. After that it's usually stick input or wind, since a gimbal smooths vibration but not an abrupt change of direction.

Do I need a licence to film drone video for money in Australia?

Yes. Flying for work means registering your drone and holding a licence or accreditation. Recreational flying needs none of that: no licence, no accreditation and no registration, including drones under 250 g. Check the current requirements on CASA's Know Your Drone site before you quote a job.
